Baccini Screen Printer 3 screen printer for Sale

SDI fabsurplus.com is pleased to announce the availability of the following listed used Baccini Screen Printer 3 screen printer.
Please click on the "Get Quote" button at the end of the Screen Printer 3 description, if you'd like to get a quotation, photos and specifications of this screen printer, and your request for this equipment will be forwarded to our SDI sales representatives automatically.
This Baccini Screen Printer 3 screen printer is available for immediate sale.
Crating, refurbishment and delivery for this equipment can be quoted on request.

Baccini Screen Printer 3 Equipment Details

SDI ID: 77010
Manufacturer: Baccini
Model: Screen Printer 3
Description: screen printer
Version: 156 mm
Vintage: 31.10.2001
Quantity: 1
Sales Condition: as is where is
Lead Time: immediately
Sales Price: Inquire

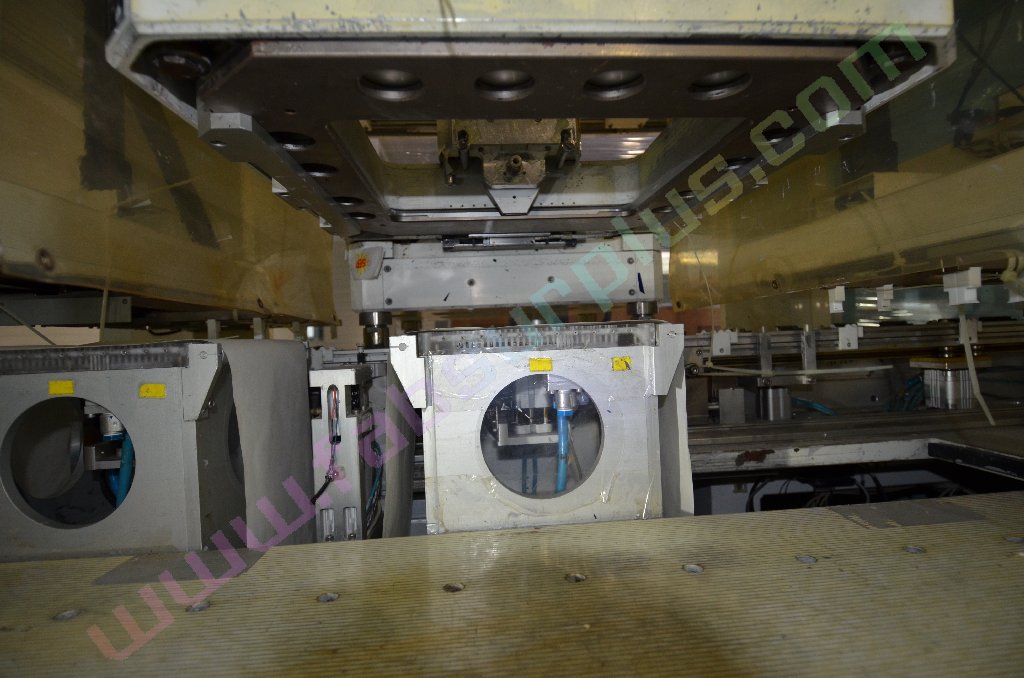

Integrated printers and dryers for the production of 156 mm square solar cells.
The integrated dryers and printers are fed via a Jonas and Redmann loader.
The J and R loader actually loads onto a Chip and Crack detection system, which then feeds into the first printer.
3 printers
2 Dryers
Soft Line.
Loaders: Printer 1 Dryer 1 Printer 2 Dryer 2 Printer 3
Operational prior to de-installation
In-line with Baccini Solar Cell Line 156mm
Single Lane process.
S/N 900140650010

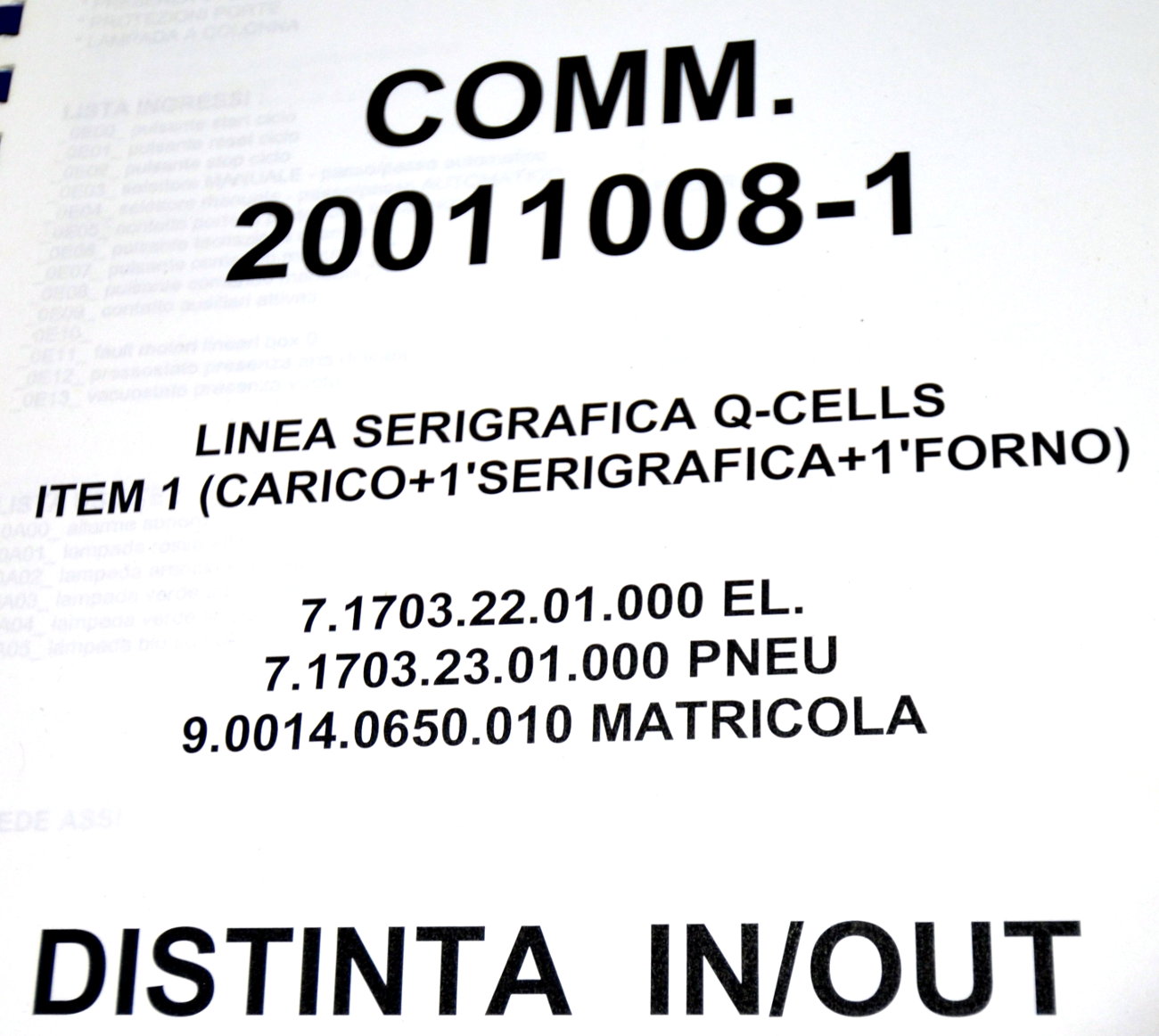

LAYOUT 7.1703.00.00.000

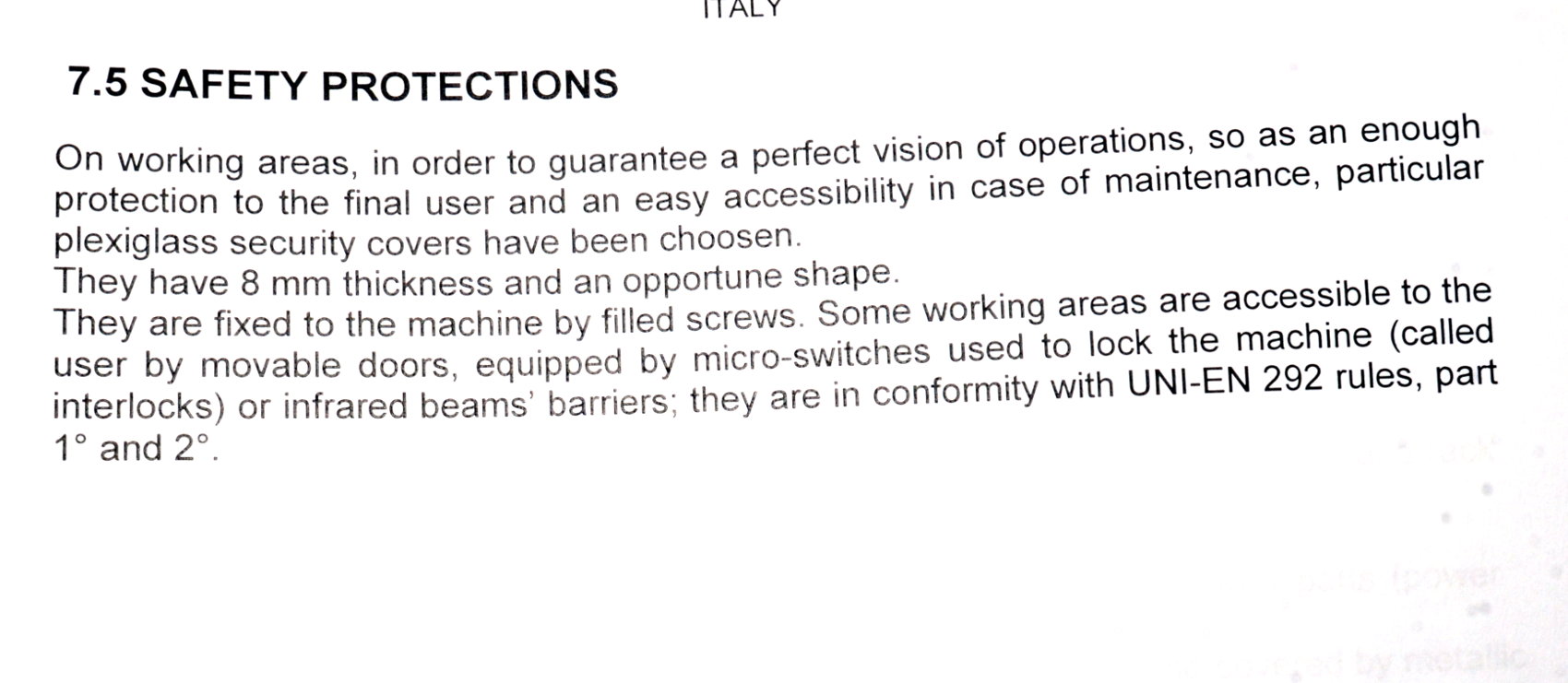

CE Marked

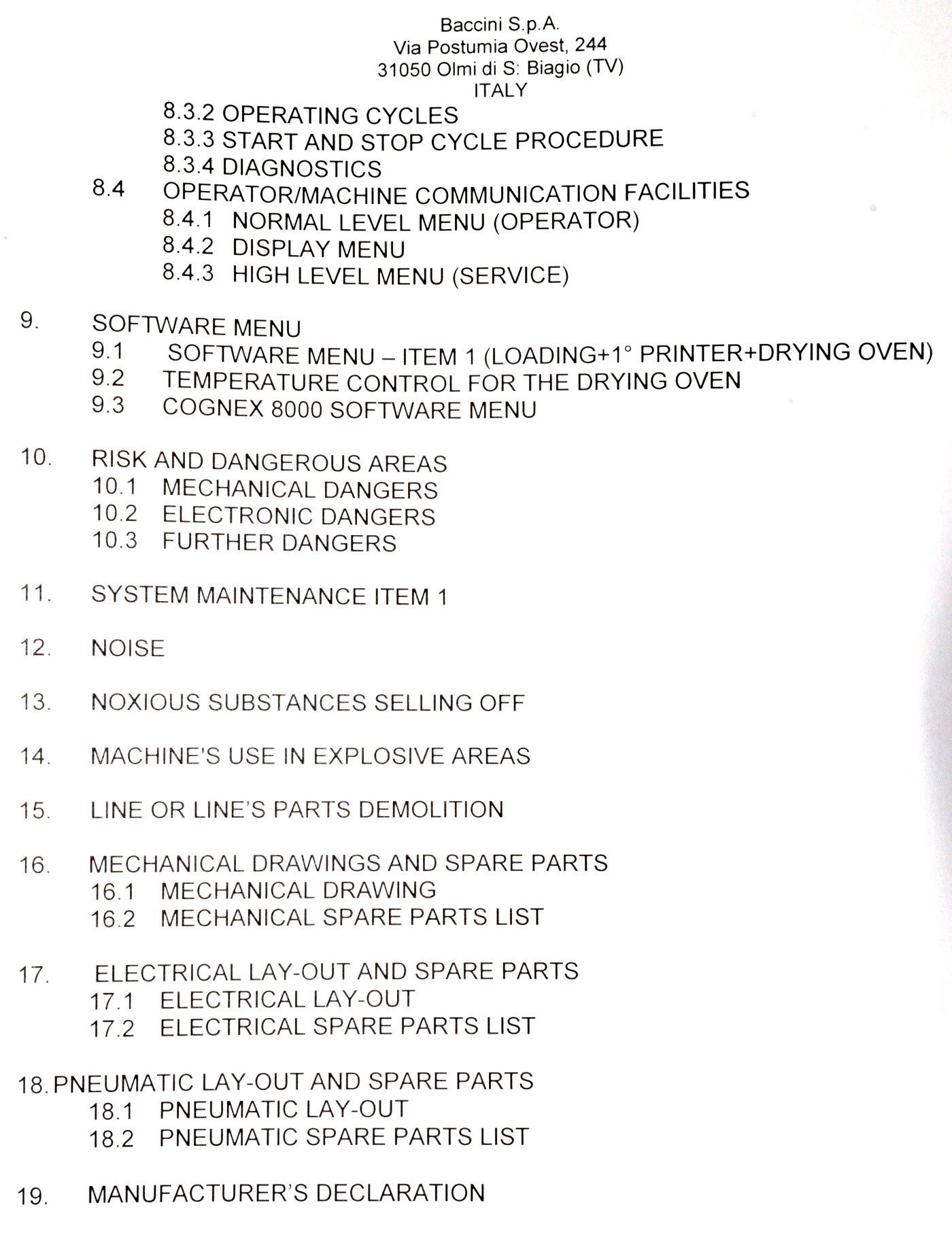

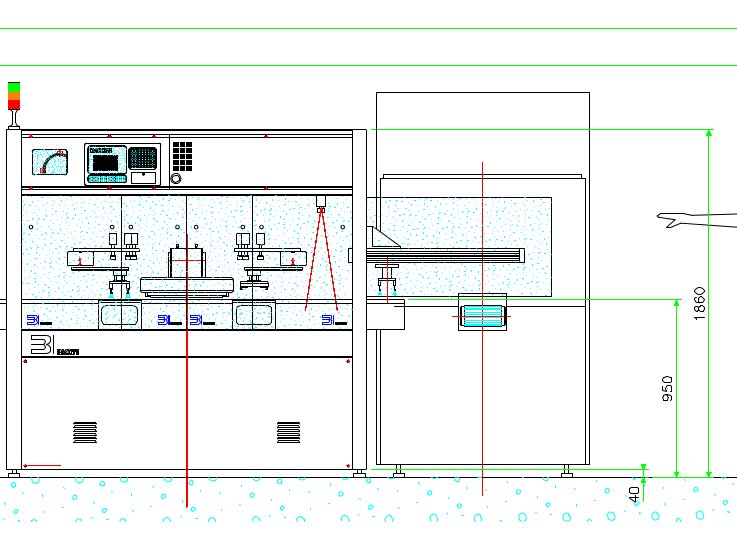

WEIGHT AND DIMENSIONS: 145 cm x 195 cm x 223 cm (h) , weight 1000 kg

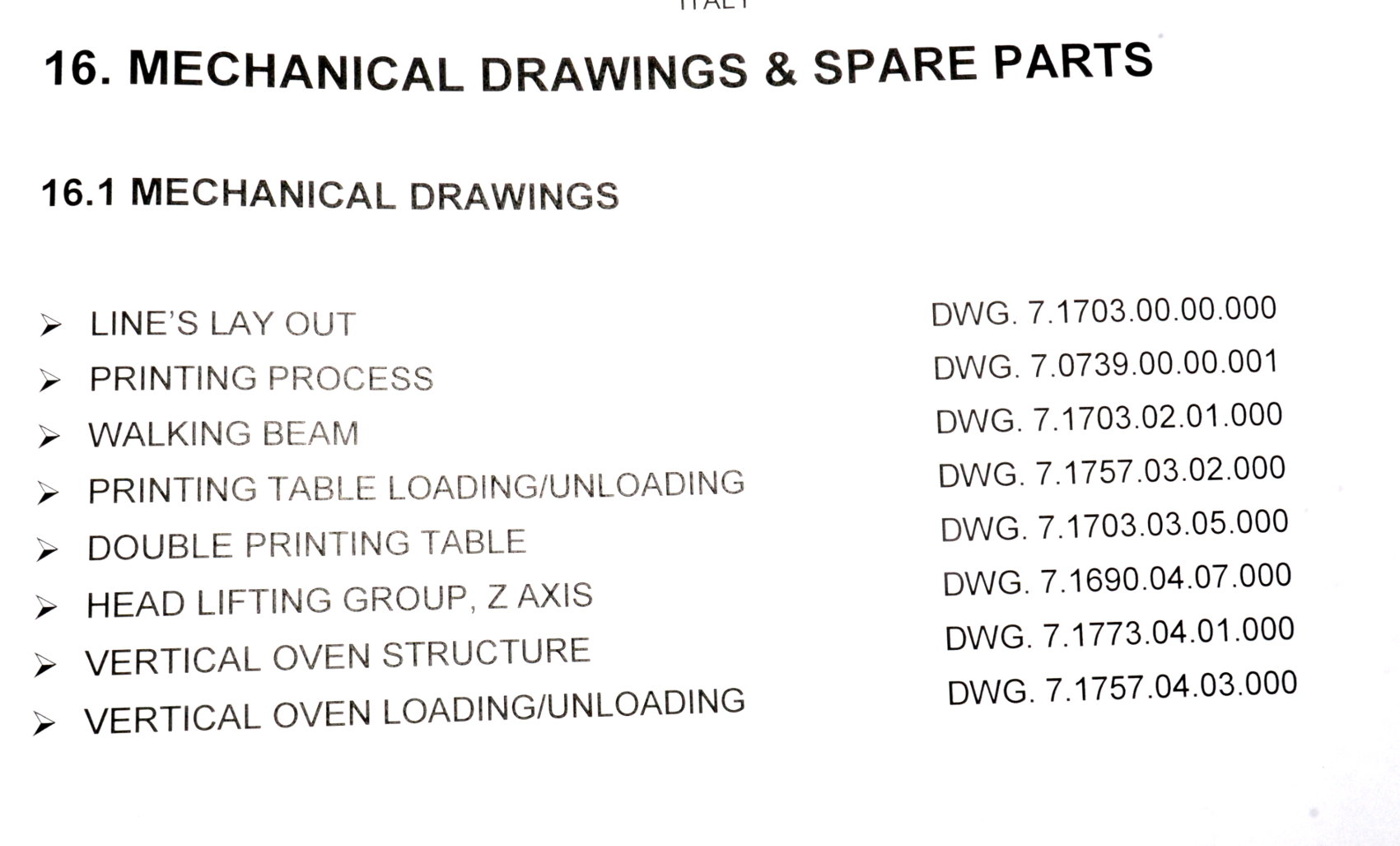

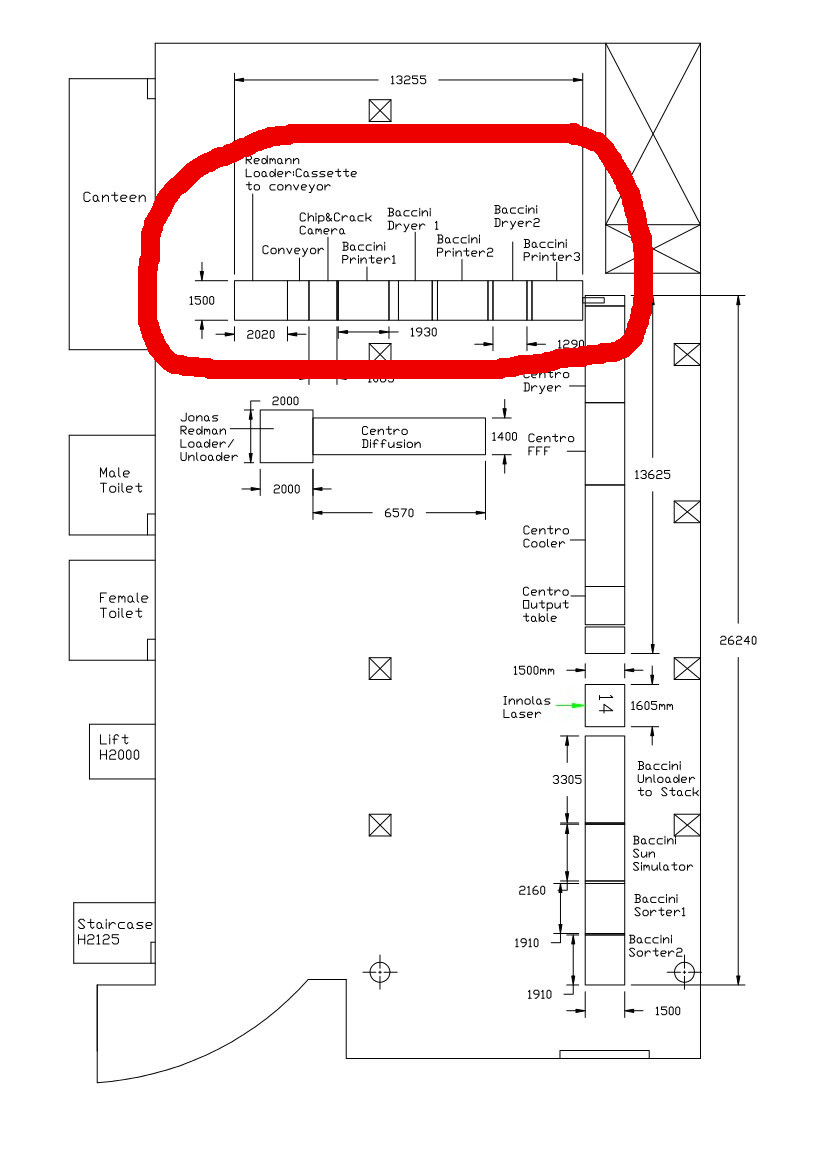

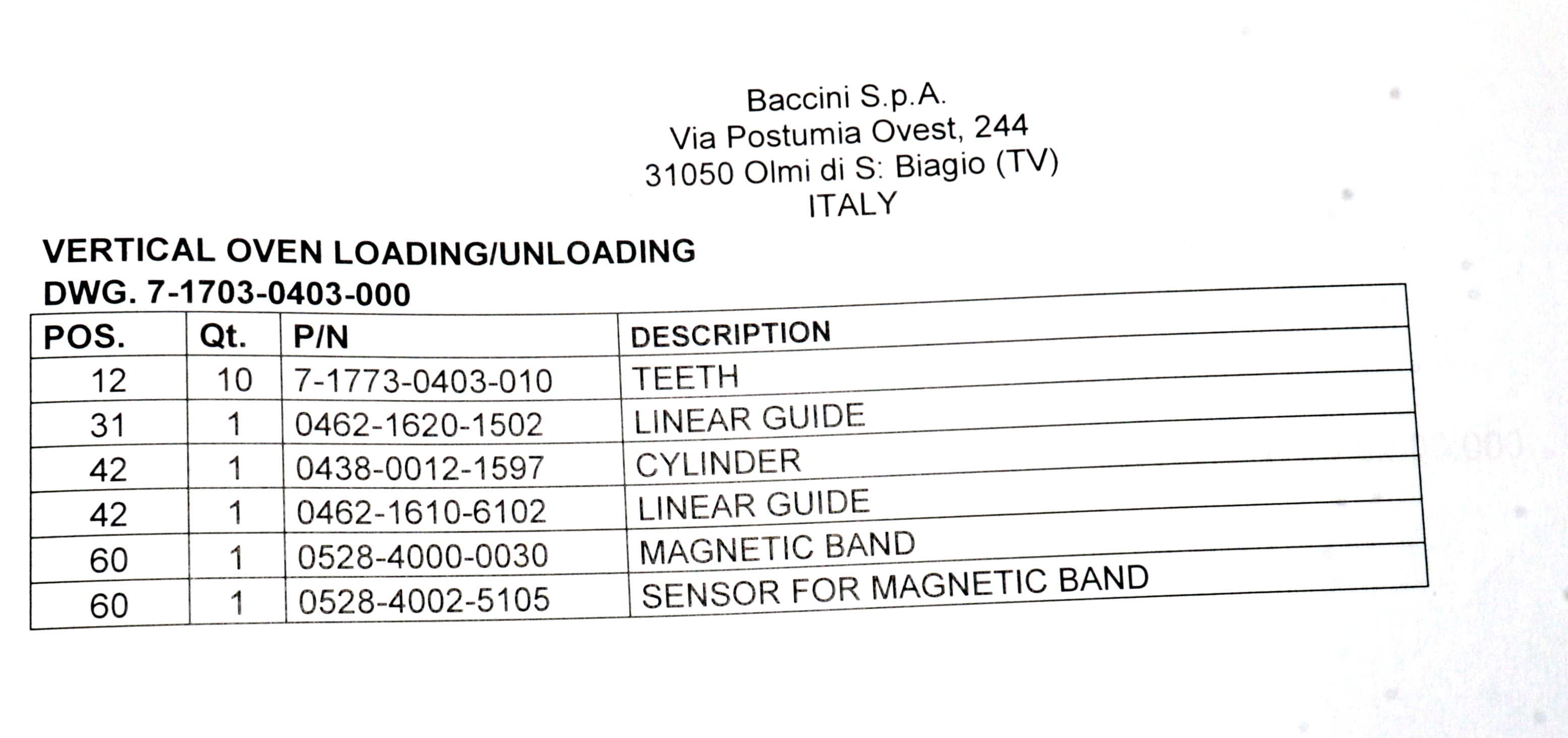

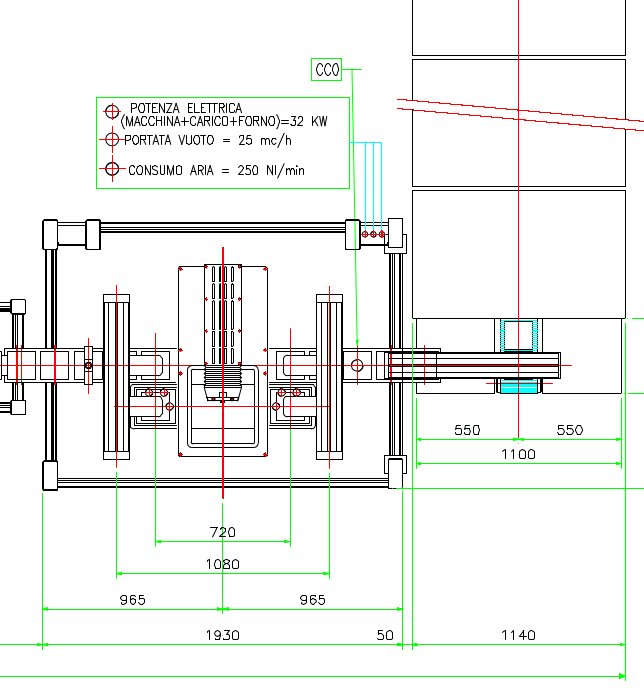

Attached also is the layout of the complete line.
The loader for the line is manufactured by Jonas and Redmann.
The 3rd printer unloaded directly onto the input table of the Centrotherm Fast Firing Furnace, which was the next element in the line.
The printers and dryers were re-furbished, re-located and re-installed by Applied Baccini in 2011.

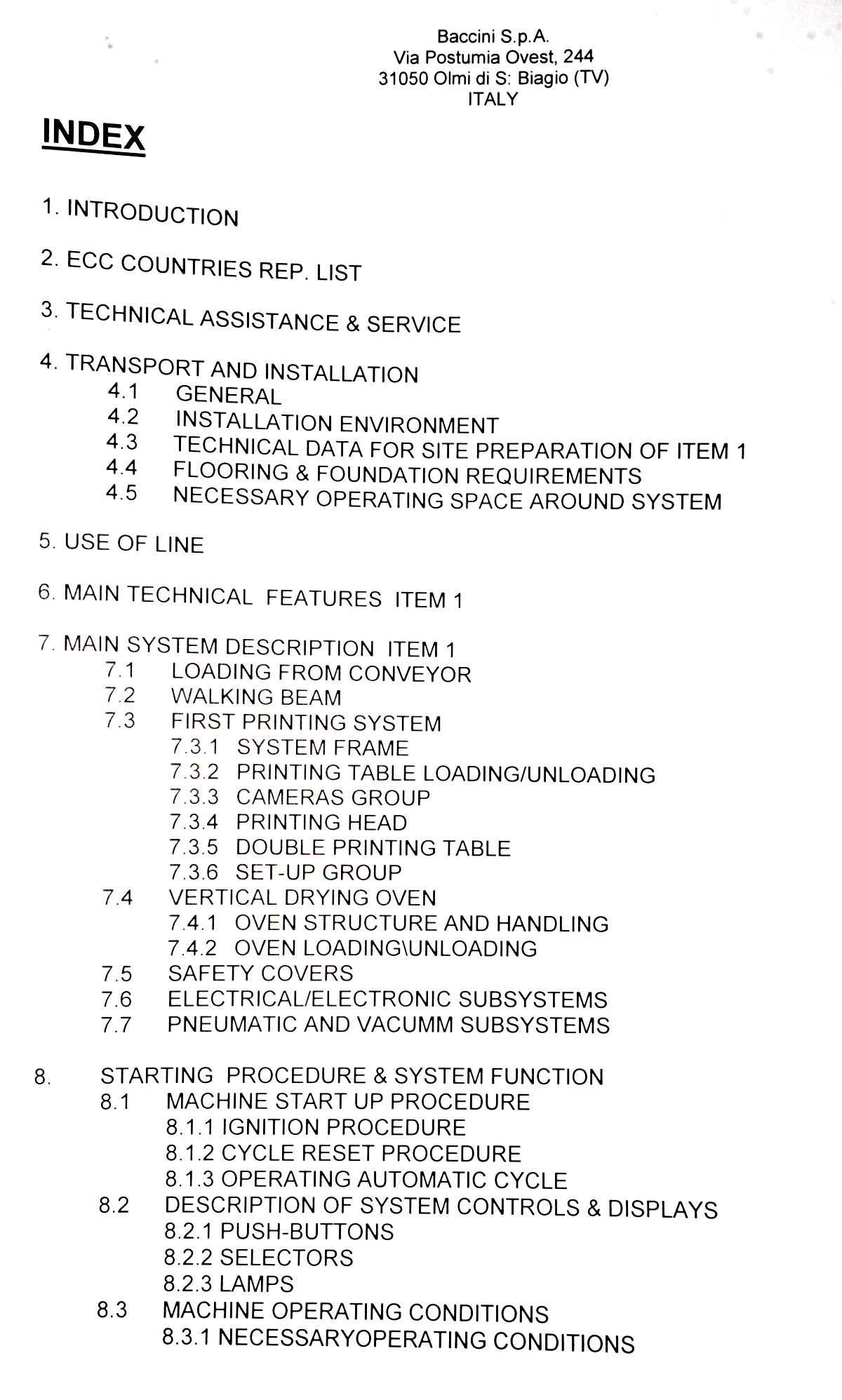

Attached is the install report.
Following re-installation, only a very small quantity of pilot production was run.
The line was de-installed in february 2012.
The line has been dis-assembled and cleaned.
It is now in storage in Port Klang.

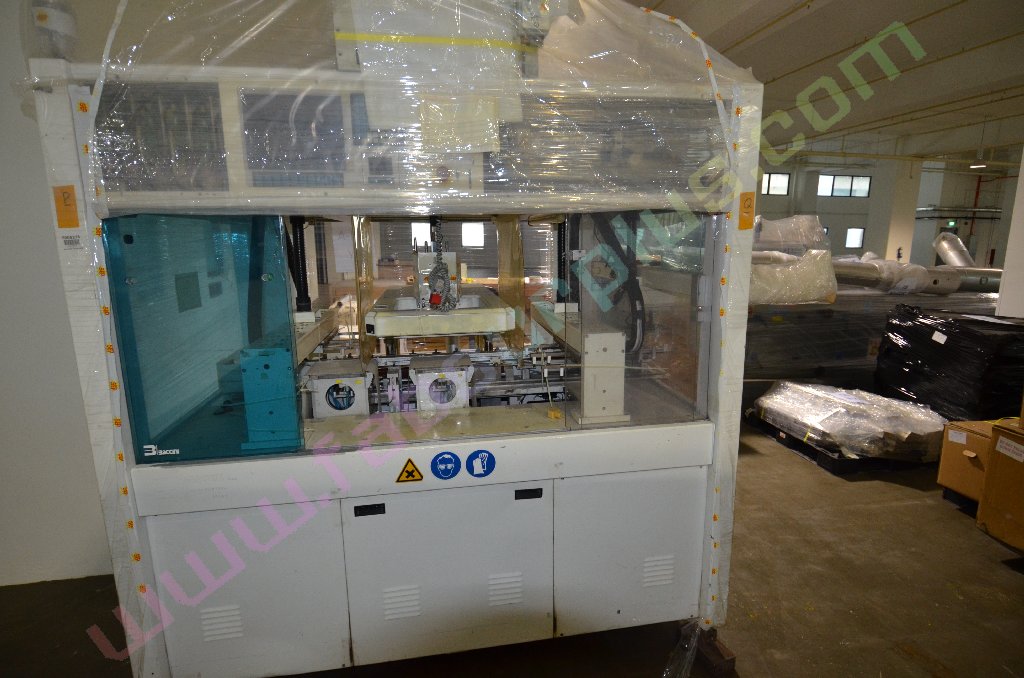

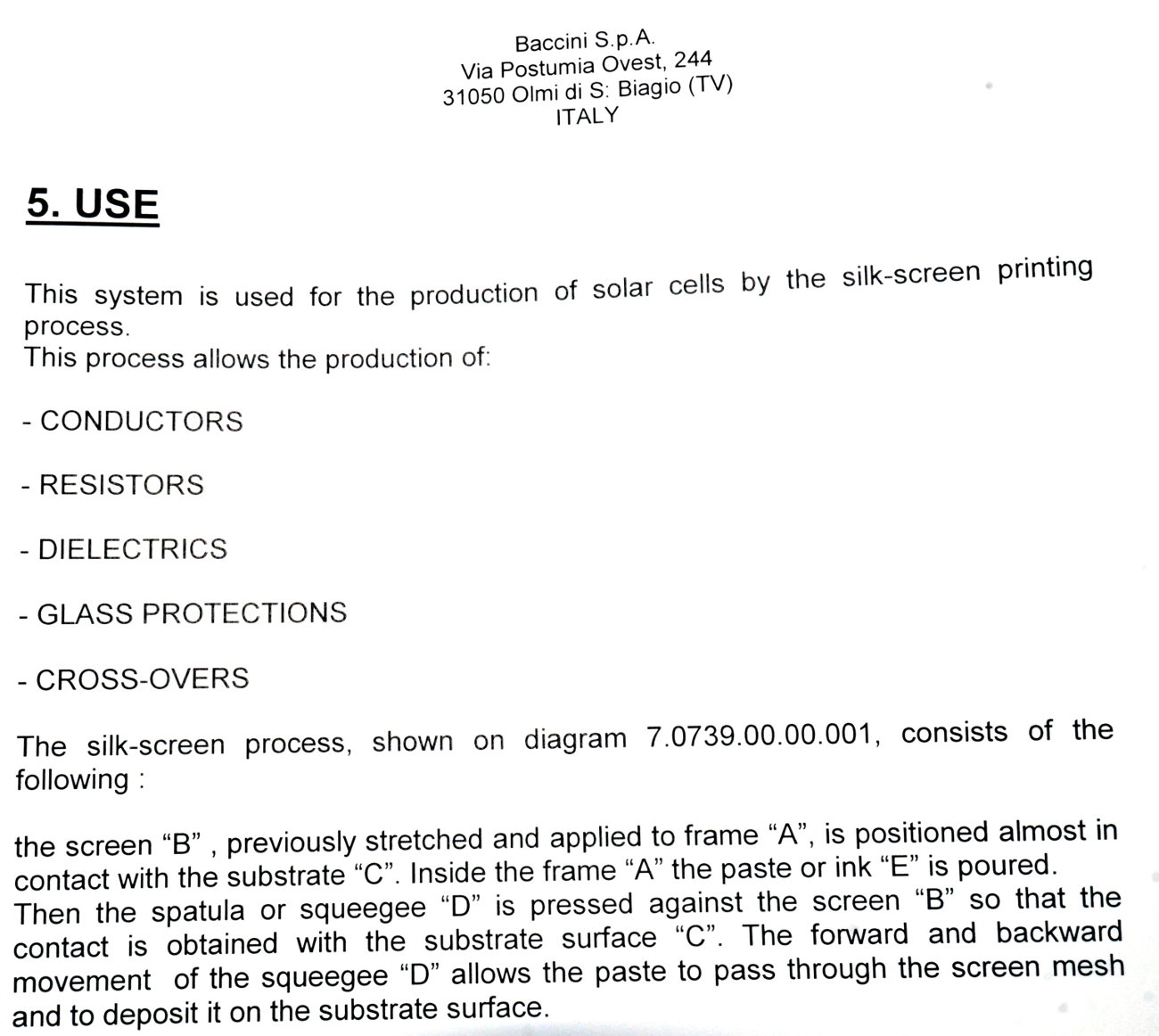

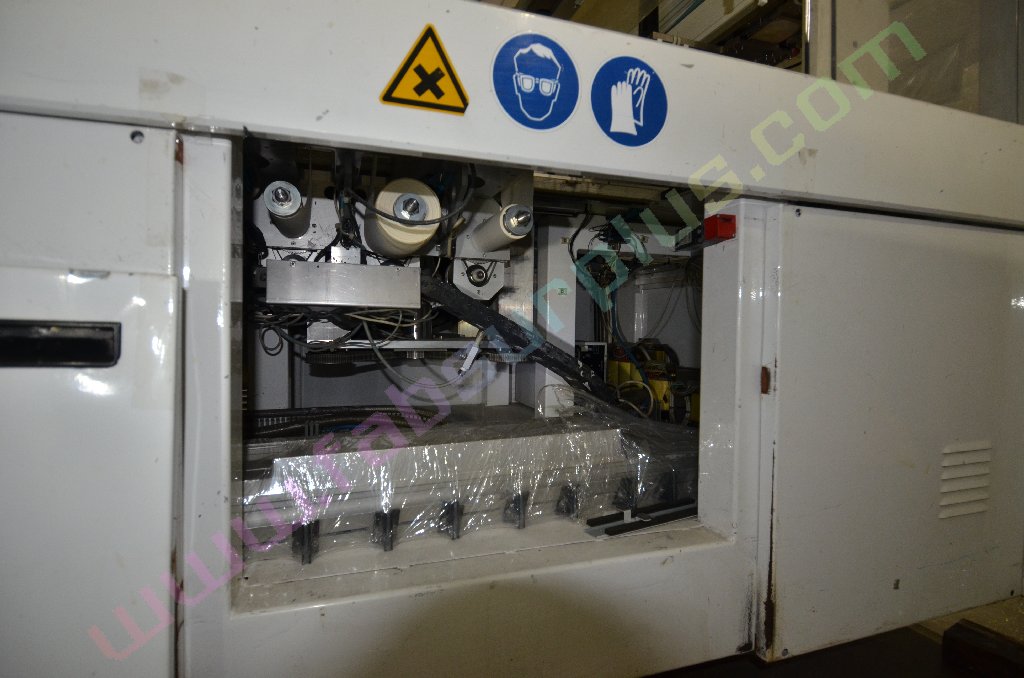

This system is used for the production of solar cells by the silk-screen printing process.
This process allows the production of:
-Glass protections

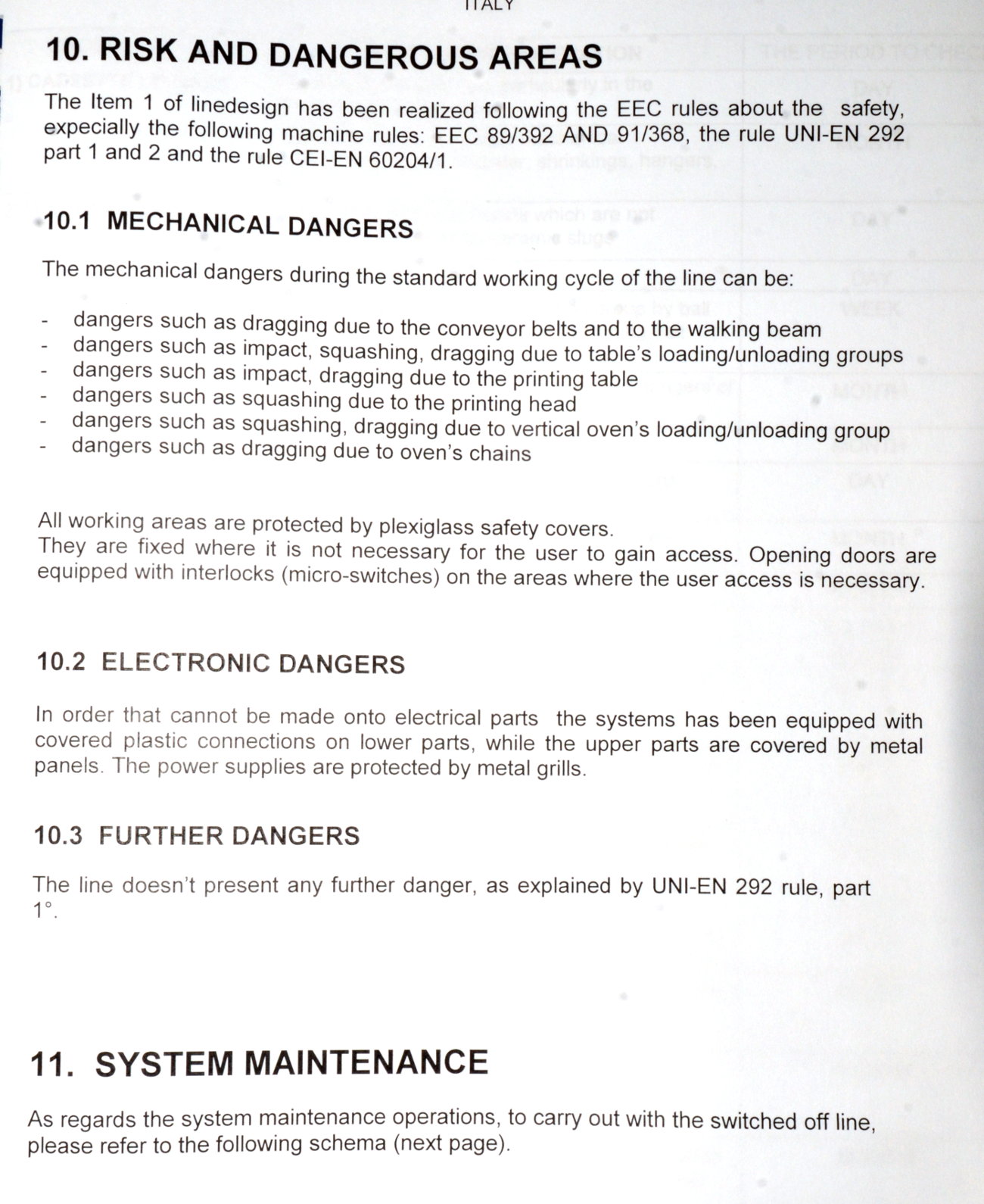

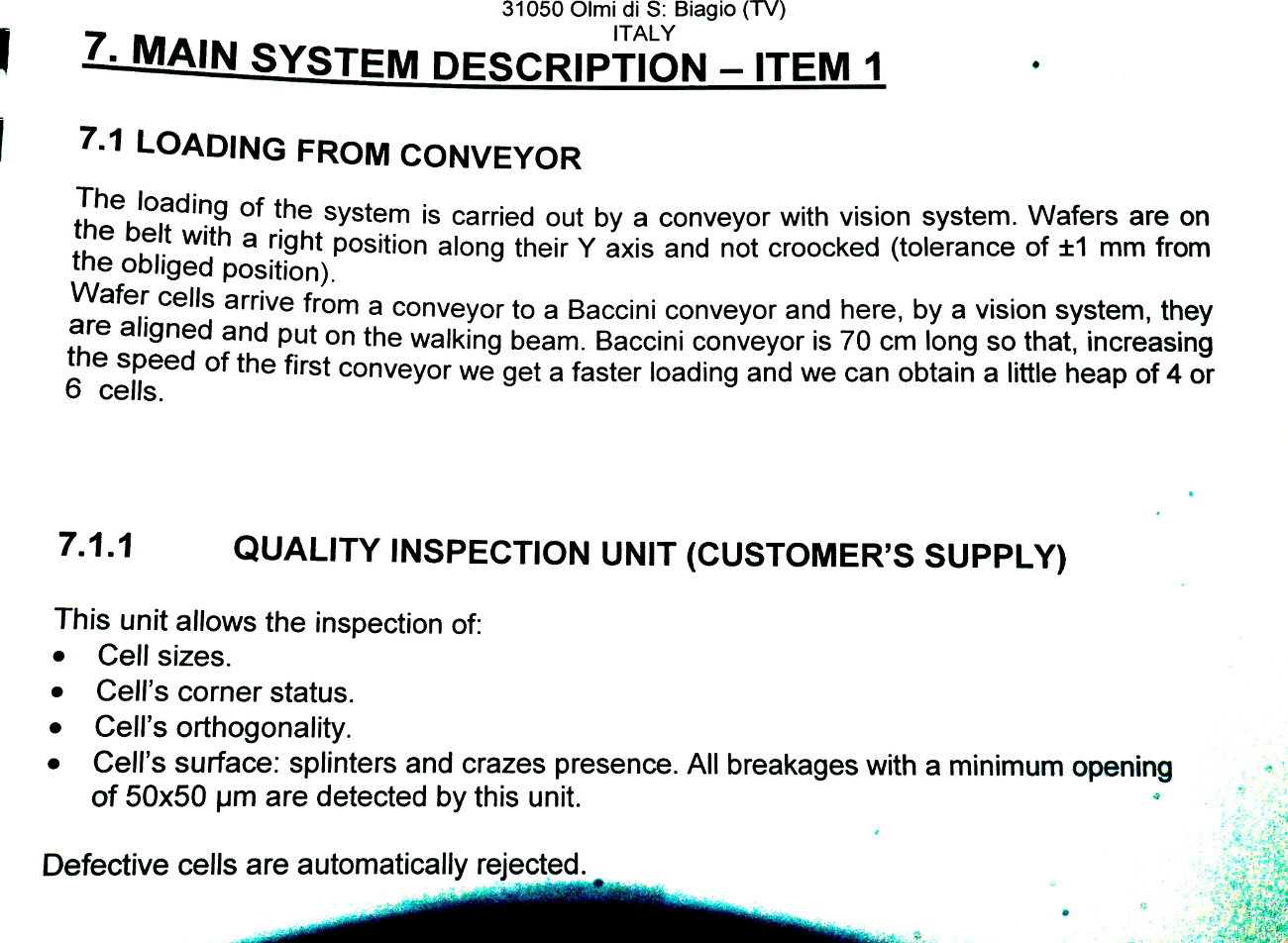

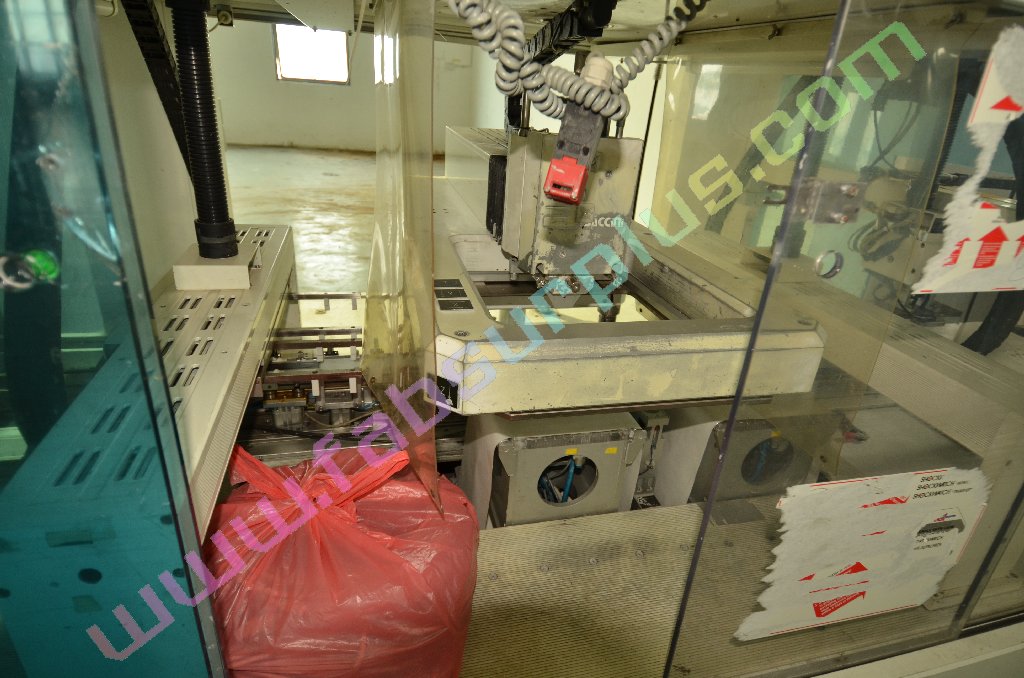

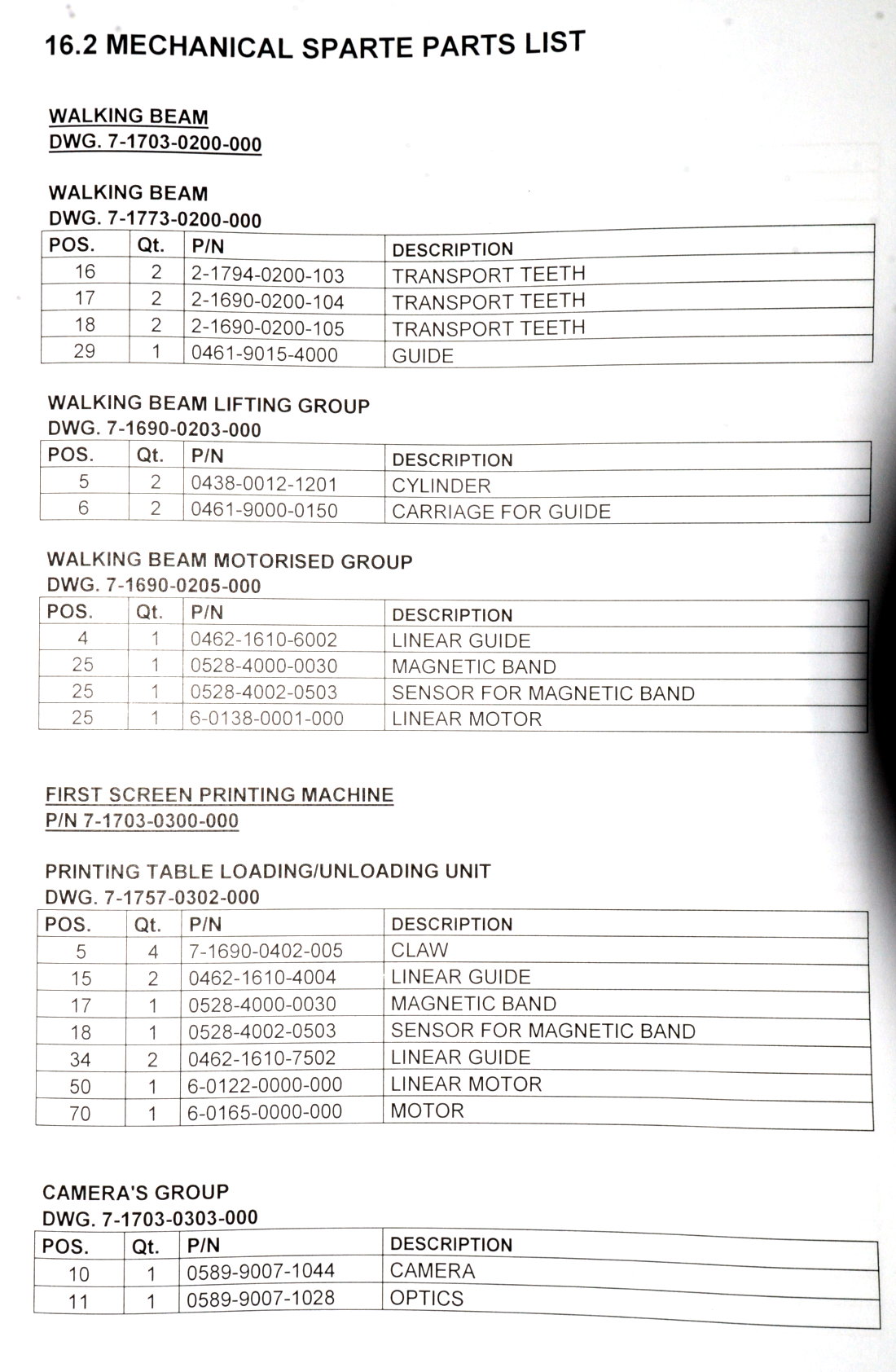

The loading of the system is carried out by a conveyer with vision system. Wafer cells arrive from a conveyer to a Baccini
conveyer and here, by a vision system the cells are aligned and put on a walking beam, by adjusting the speed of the first
conveyer you can obtain loading heaps of 4 or 6 cells.
Printing head resolution is approx 0.5nm

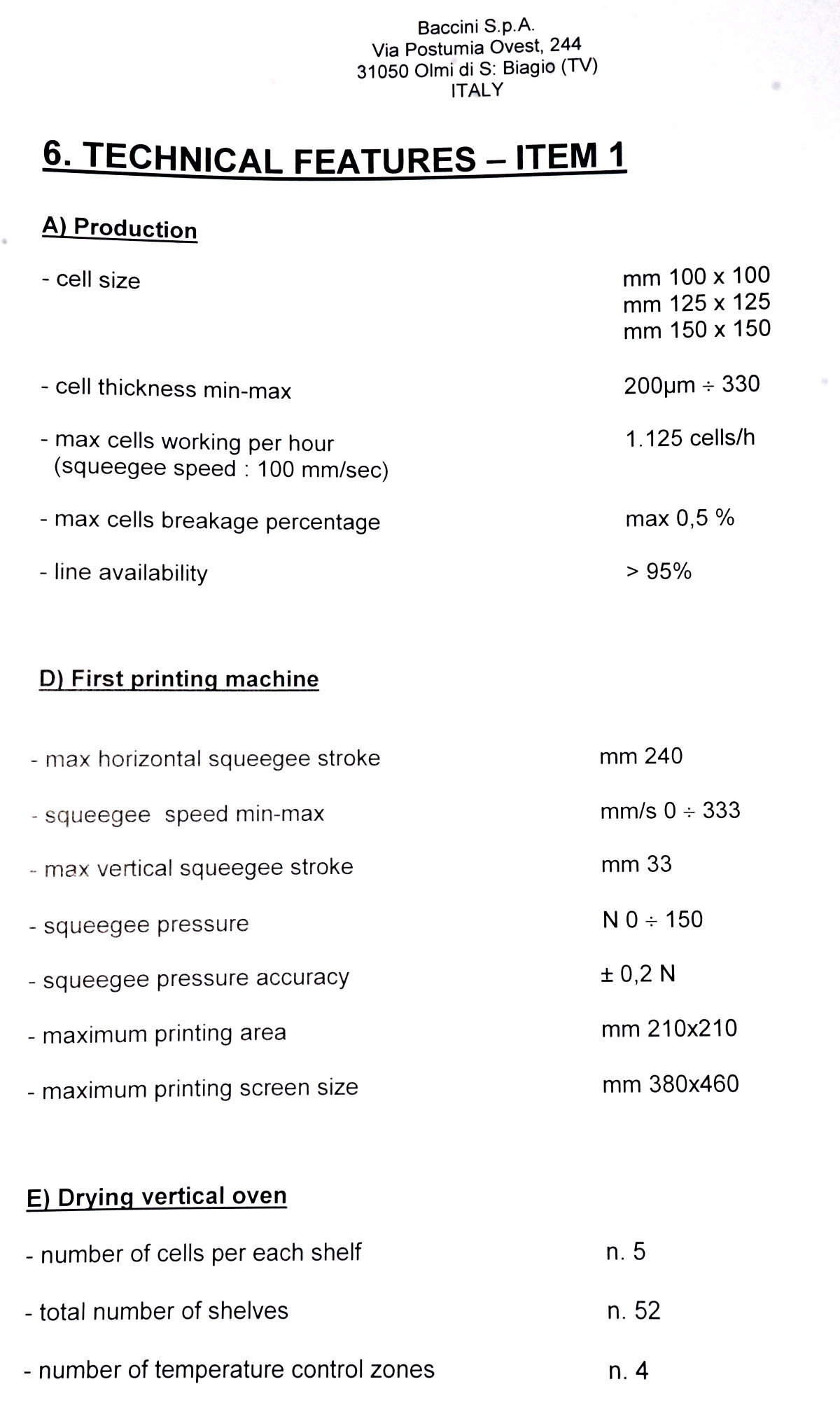

Technical Specifications

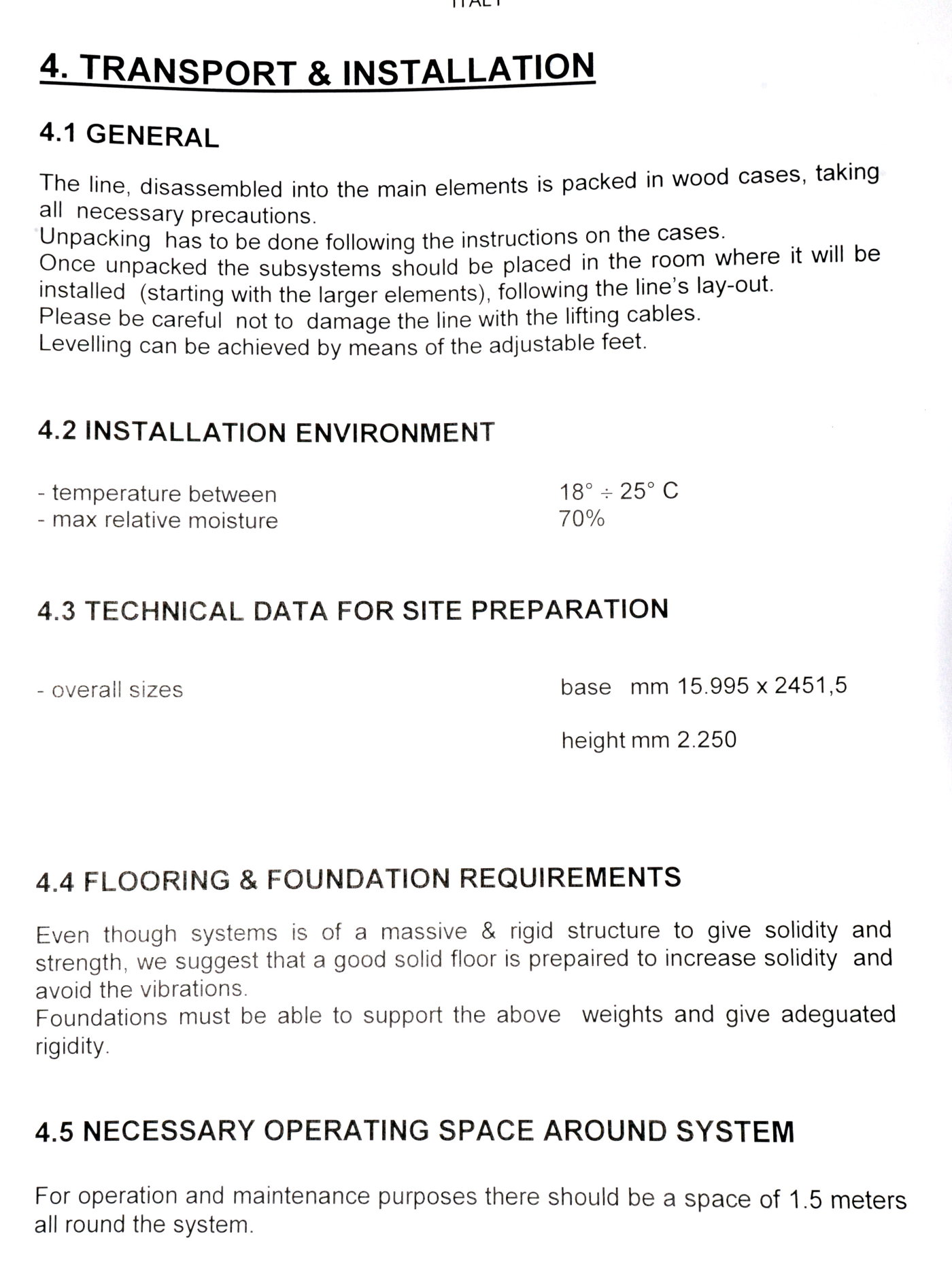

Installation environment: 18 - 25 deg C
Max relative Moisture: 70%
Overall Size: Base: 15,995 x 2451.5 mm
    Height: 2,250mm
A) Production
-Cell Size: 100x100mm,125x125mm,150x150mm

-Cell Thickness min-max 200nm - 330
-Max cells working per hour: 1,125 cells/hr
(Squeegee speed: 100mm/sec)

-Max cells breakage percentage: max 0.5%

-Line availability:  >95%

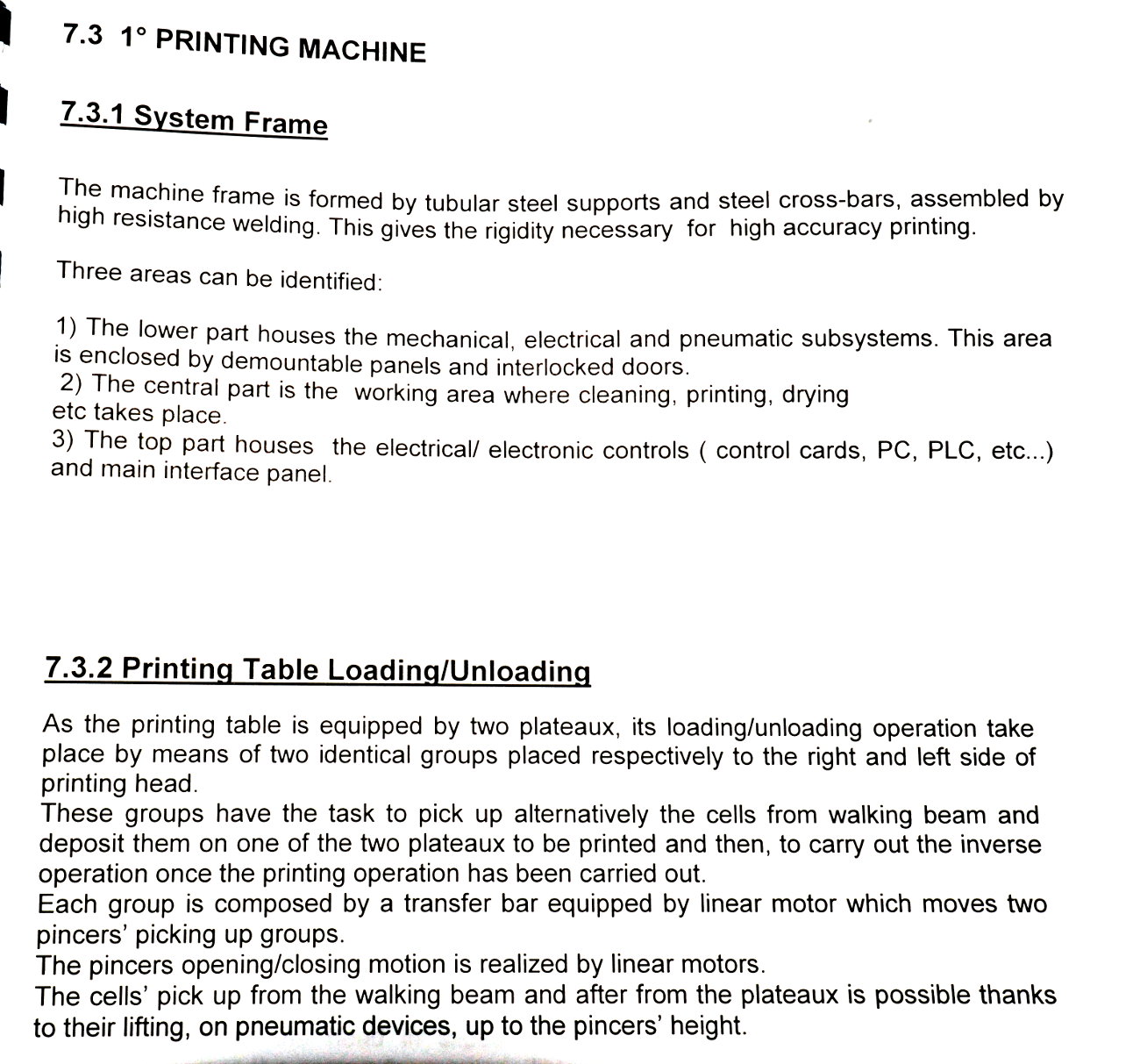

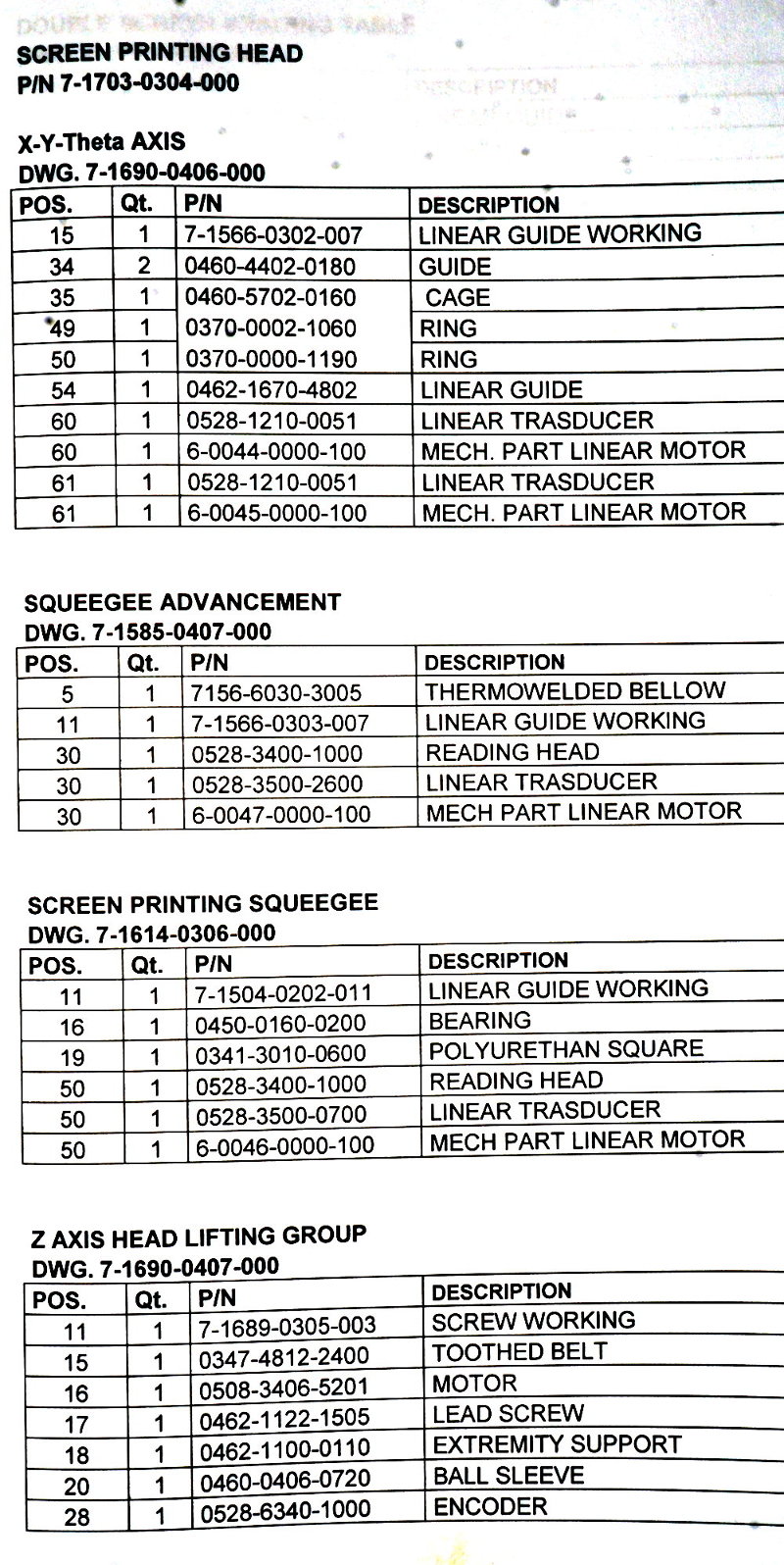

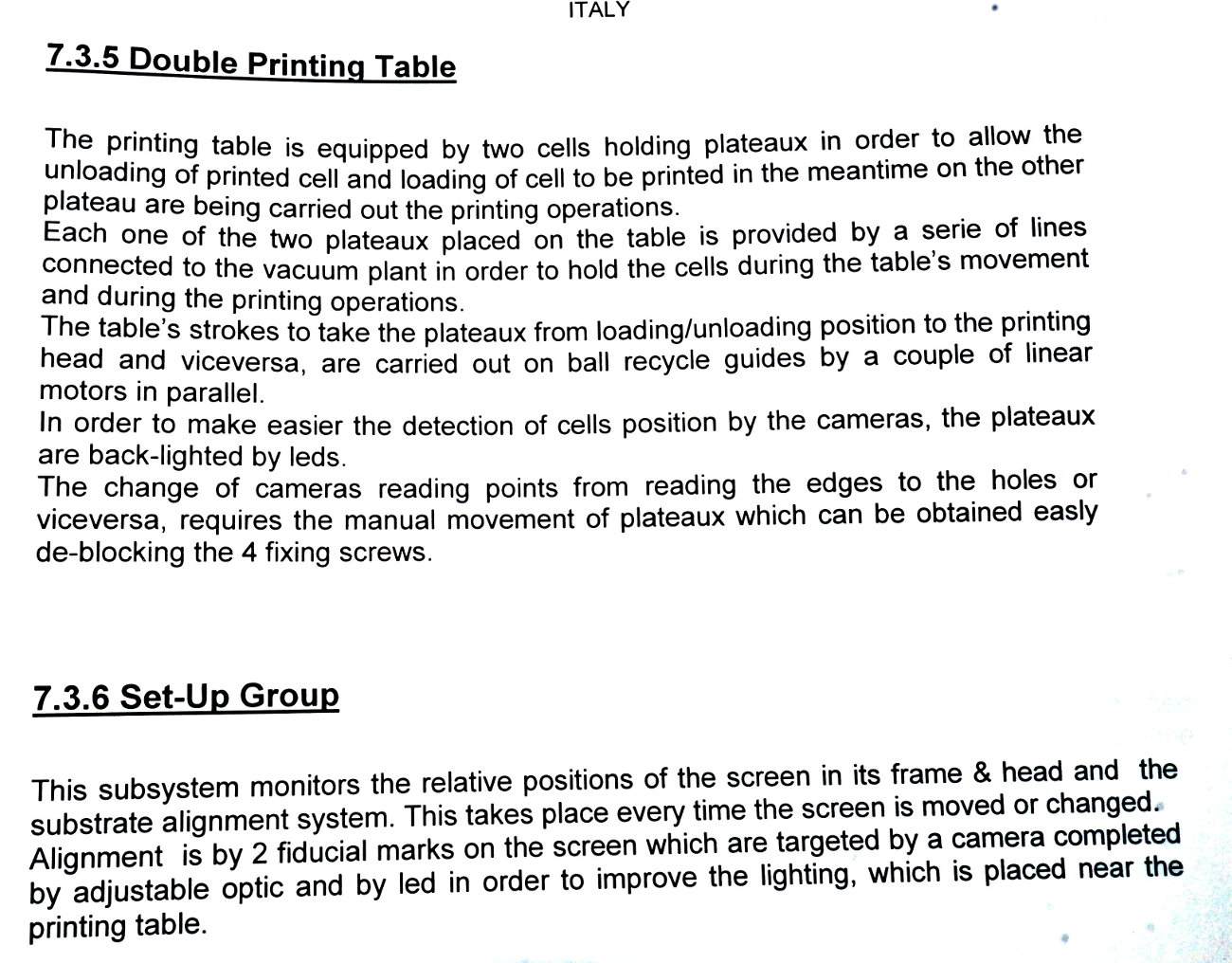

D) First Printing Machine
-Max horidontal squeegee stroke: 240mm
-Squeegee speed min-max: mm/s 0-333
-max vertical squeegee stroke: 33mm
-squeegee pressure N 0-150
-squeegee pressure accuracy: +/- 0.2N
-Maximum printing area: 210x210mm
-maximum printing screen size: 380x460mm

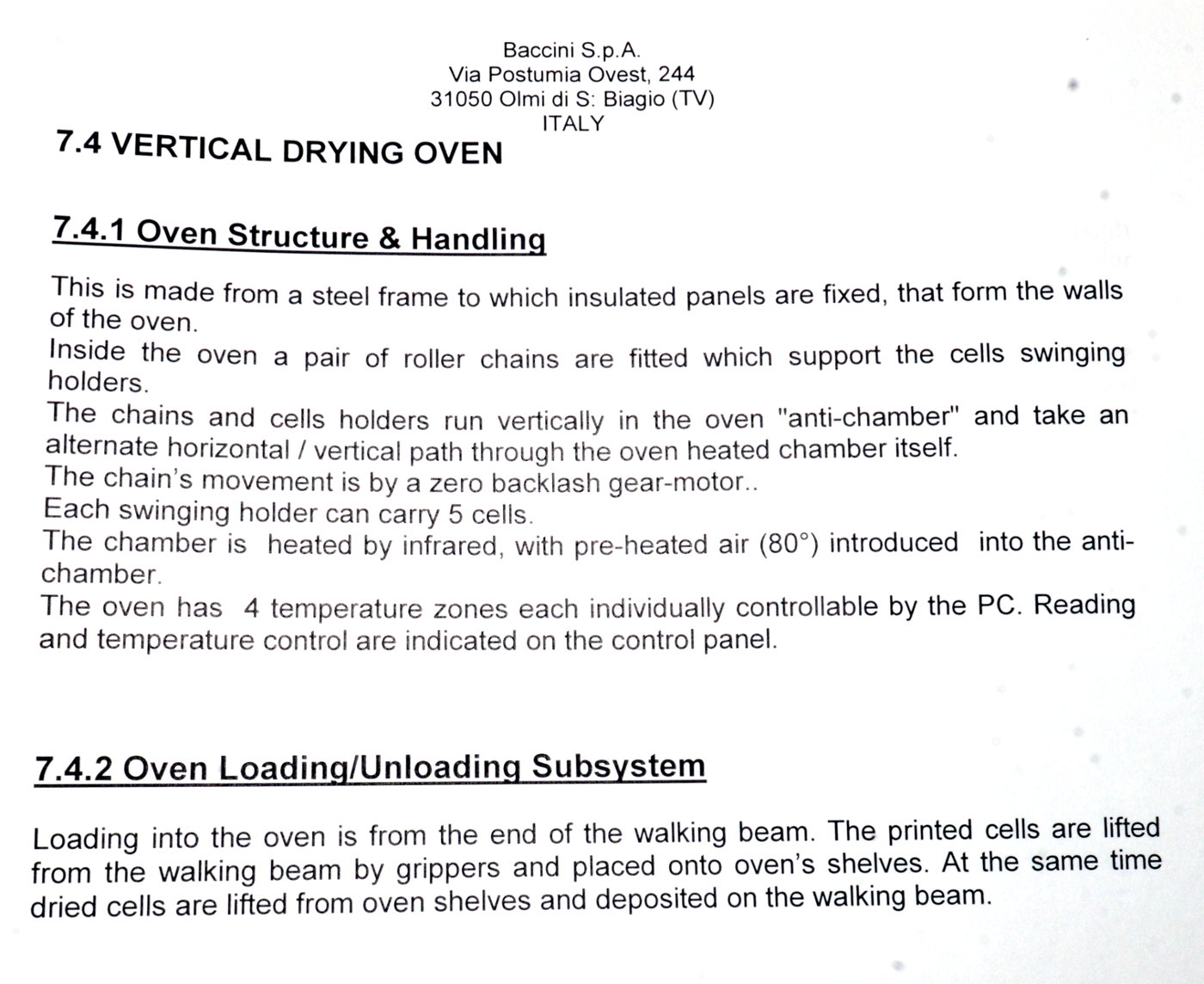

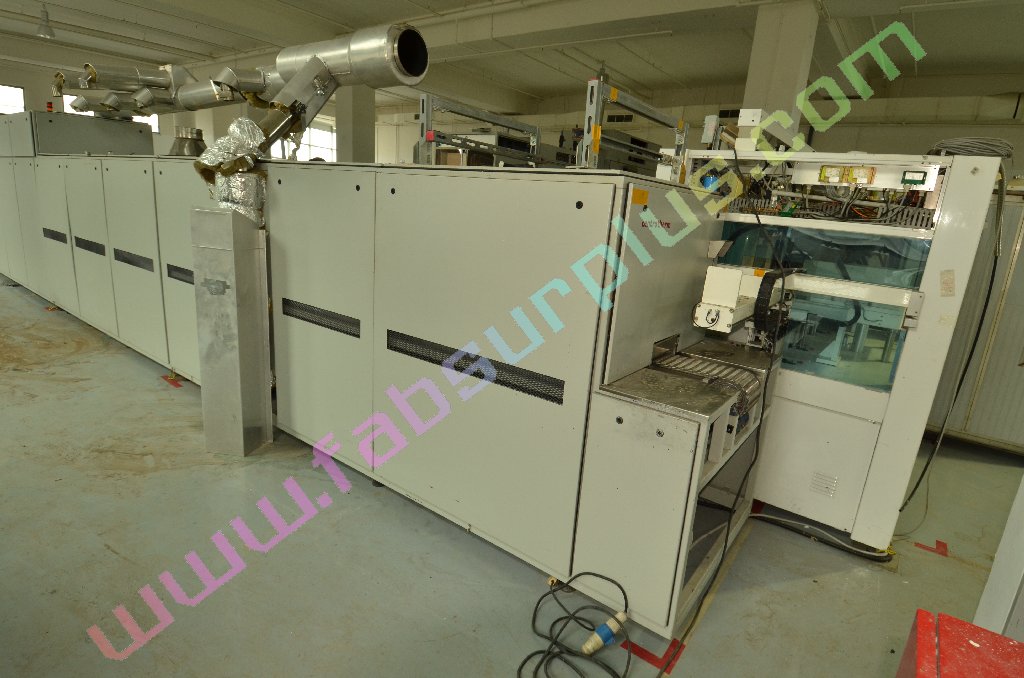

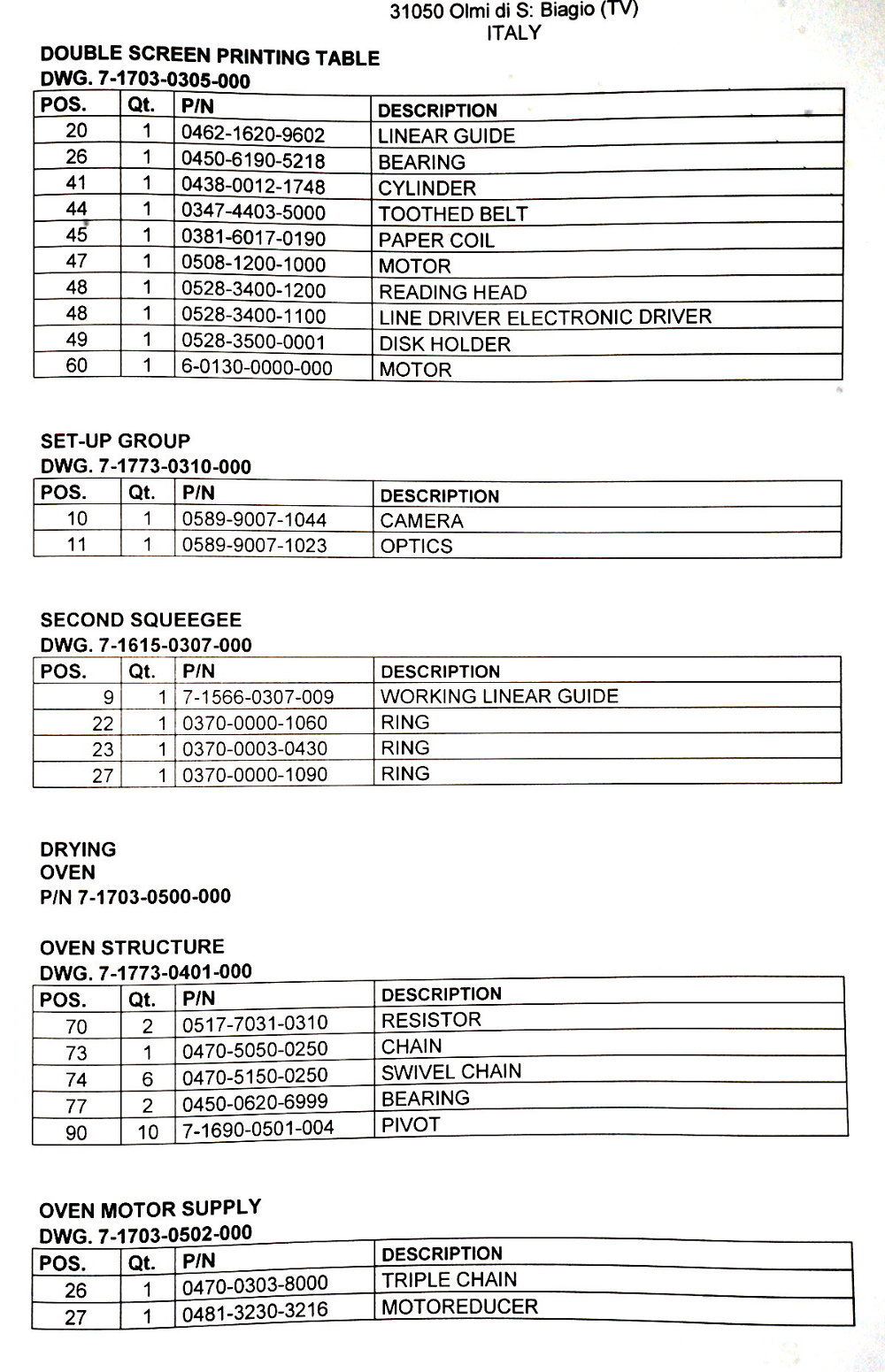

E) Drying vertical oven
-Number of cells per each shelf n.5
-total number of shelves n.52
-number of temperature control zones n.4

-settled temperature tolerance +/- 5deg C
-max operating temperature in the oven: 250deg C
-min operating temperature in the oven: 40deg C
-paste levelling and pre-heating time: min.2
-drying time min.5
-cooling time min.2

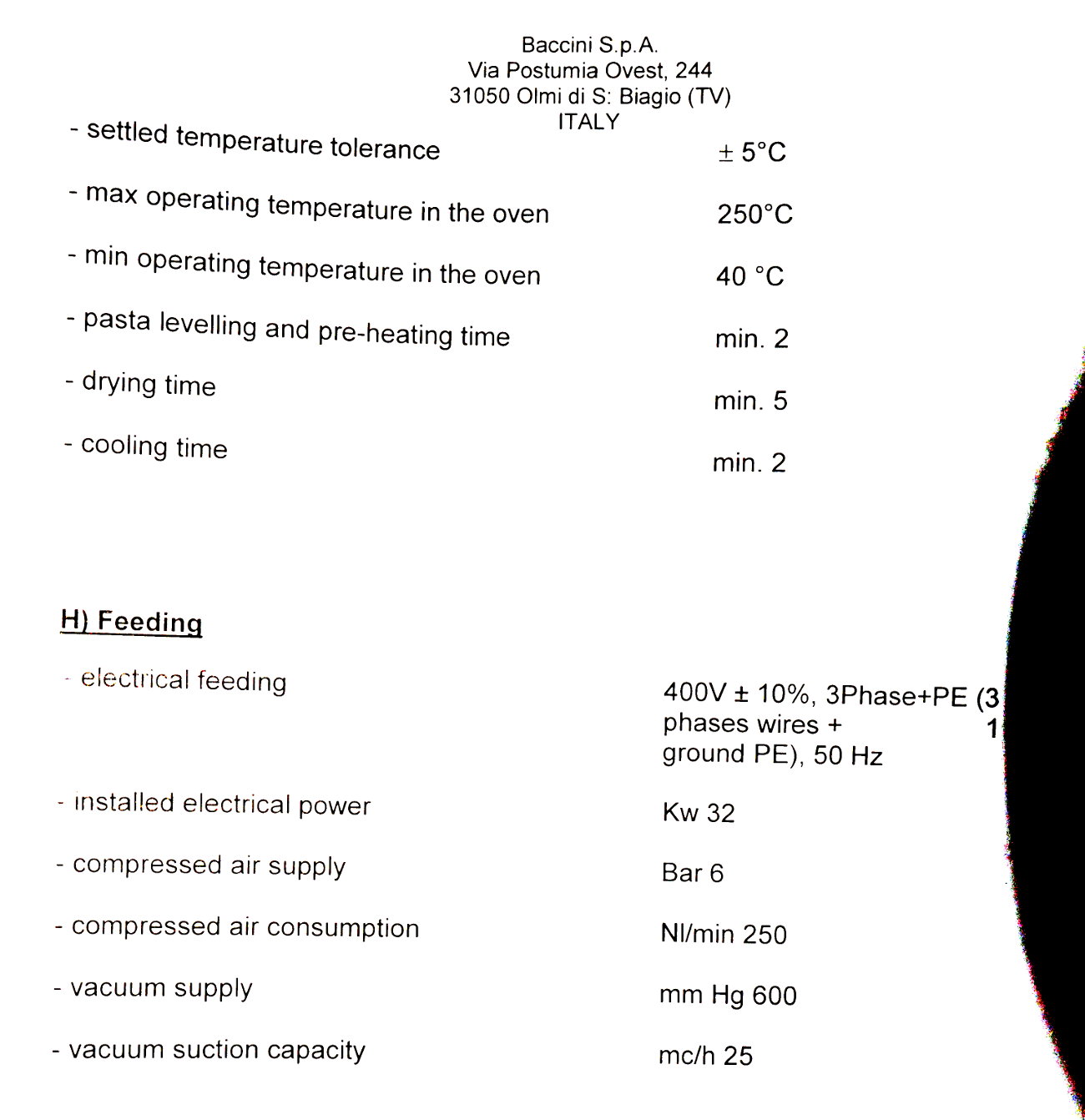

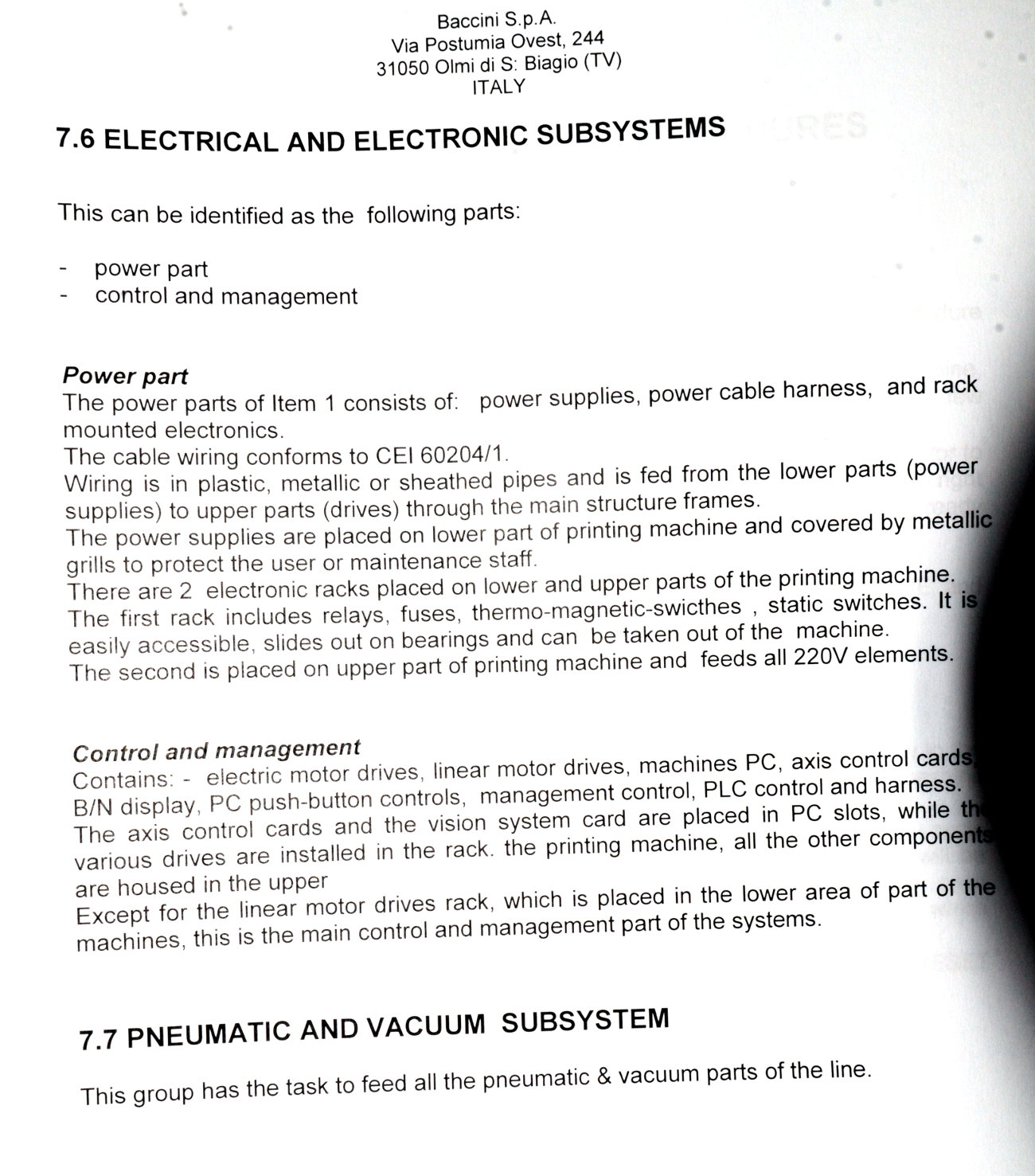

h) Feeding
-electrical feeding 400V +/- 10% 3-Phase+PE(3 phases wires +1 ground PE), 50hz
-installed electrical power: 32KW
-compressed air supply: Bar 6
-Compressed air consumption nl/min 250
-Vacuum supply: mm Hg 600
-Vacuum suction capacity: mc/h 25

Breakages in the quality inspection unit can detect splinters and crazes presence,
with a minimum opening of 50x50nm are detected. Defective cells are automatically rejected.
