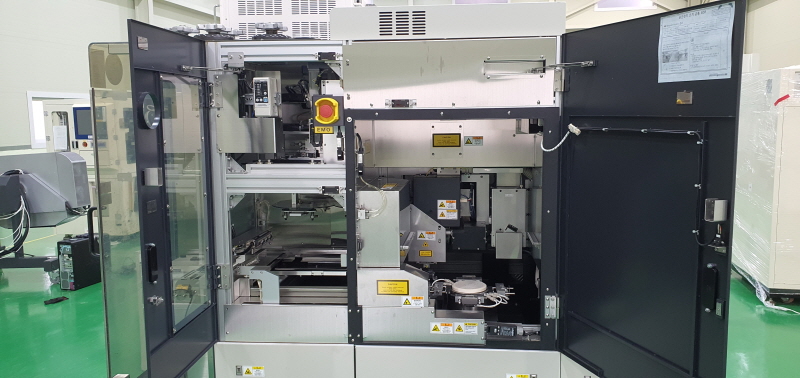

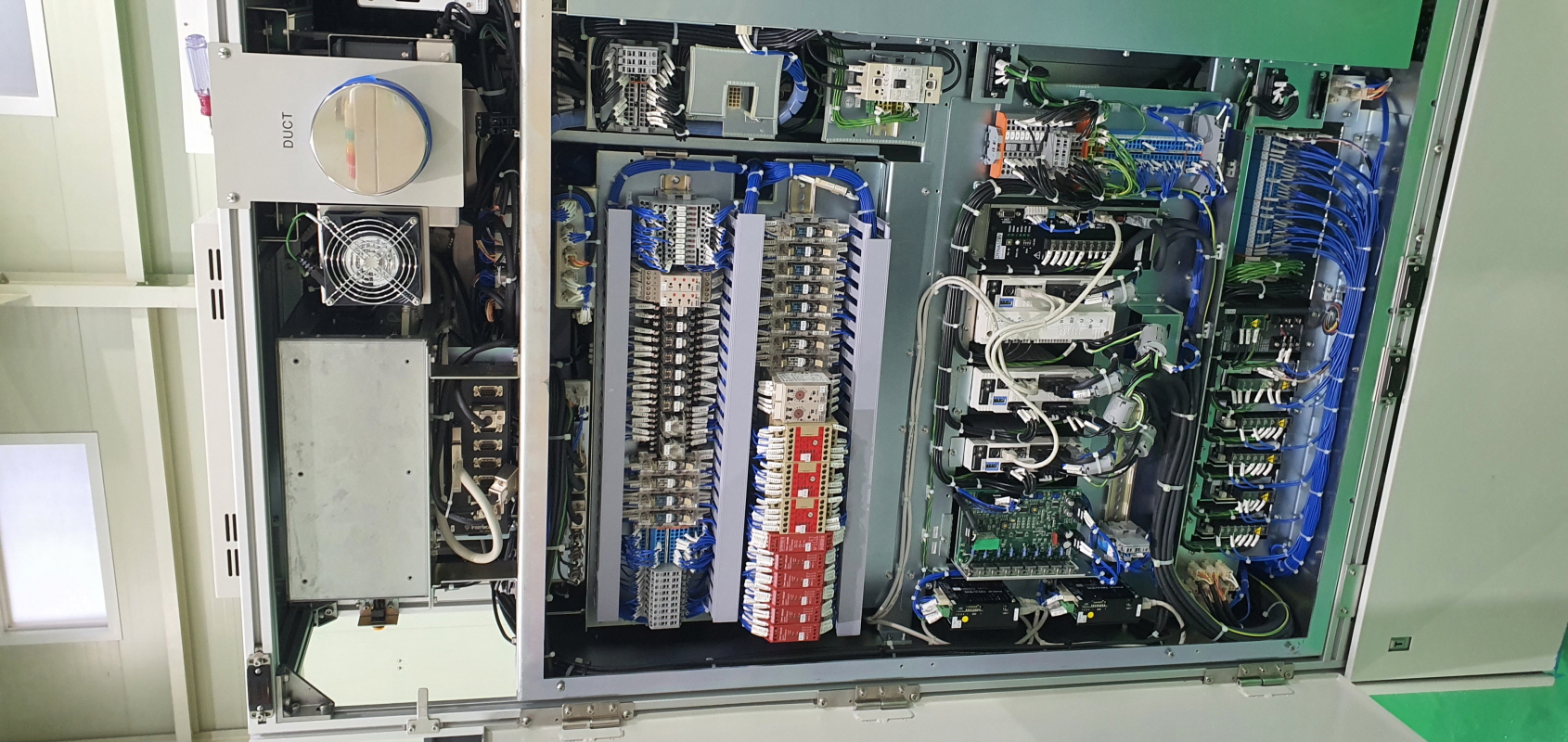

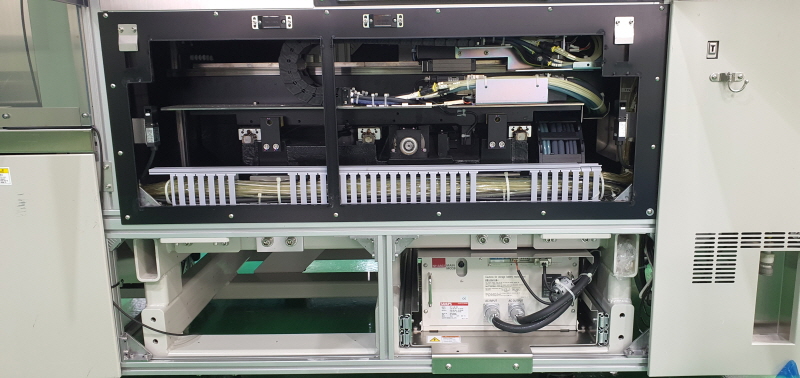

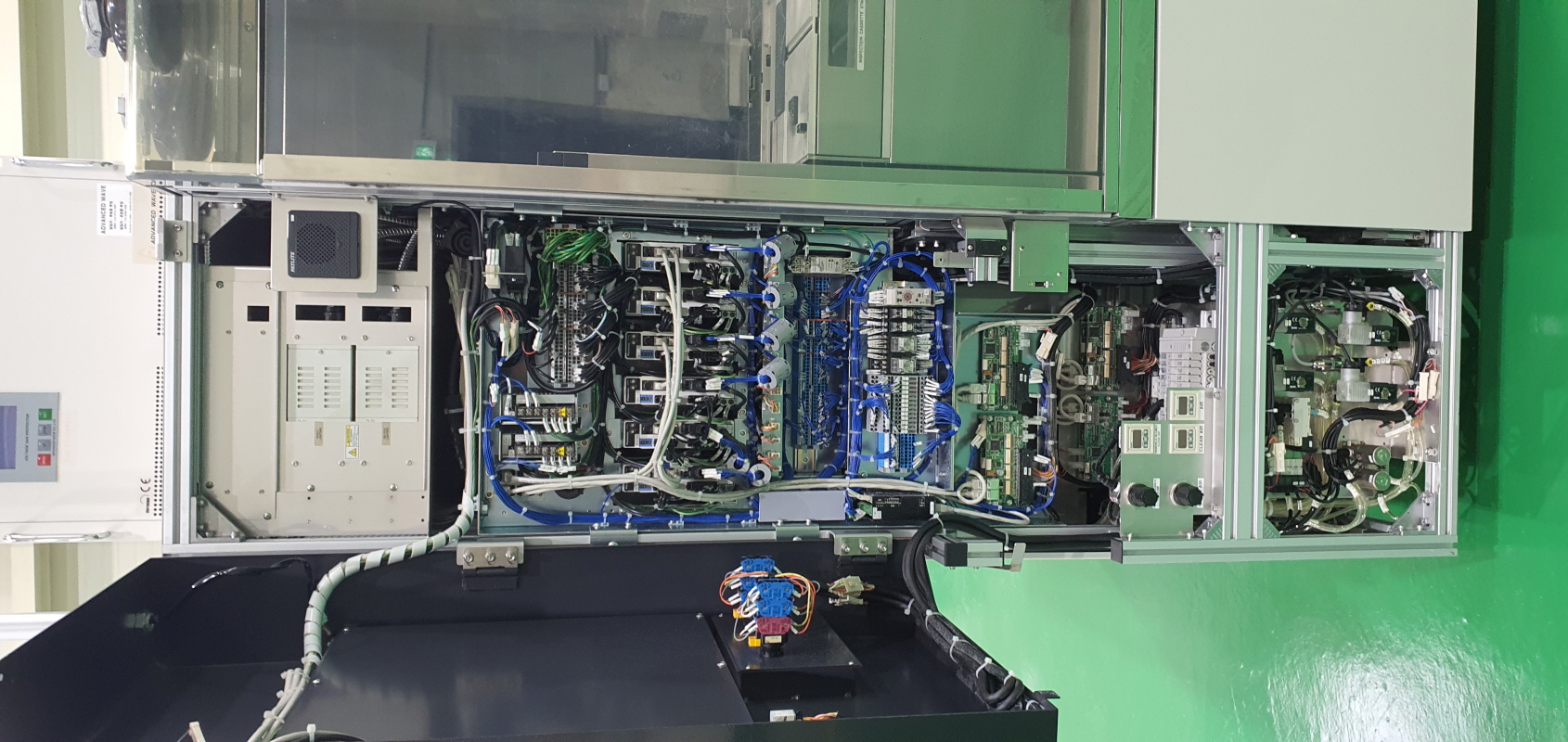

DISCO DFL-7340 Laser Dicing Saw for Sale

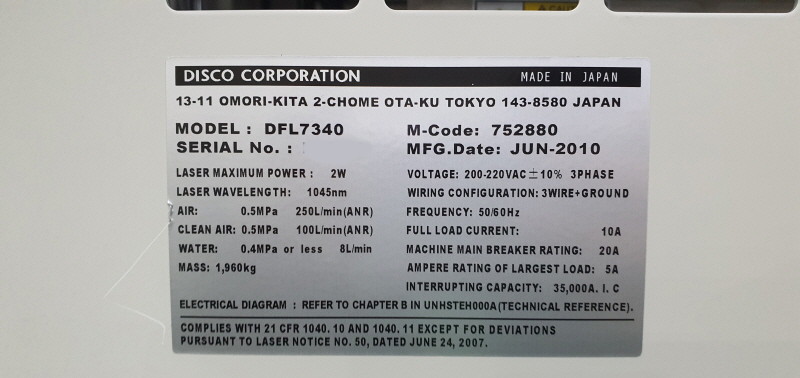

Machine Model

DFL7340

STEALTH DICING

Max. Workpiece Size

mm

ø200

X-axis

(chuck Table)

Processing range

mm

210

Max. Feed speed

mm/s

1000

Y-axis

(chuck Table)

Processing range

mm

210

Index step

mm

0.0001

Index pos. Accuracy

mm

0.003 or less/310 (Single error) 0.002 or less/5

Scale resolution

mm

0.0001

Y-axis

(Z2axis

process

point)

Processing range

mm

-

Index step

mm

-

Index pos. Accuracy

mm

-

Scale resolution

mm

-

Z-axis

Input range lens height

mm

-2.000 ≈5.000

Moving resolution

mm

0.0001

Repeatability accuracy

mm

0.001

ϴ-axis

(Chuck table) Max. rotating angle

deg

380

(320º in the positive (+) direction and 60º in the

negative (-) direction from the initial position)

Laser Oscillator / Oscillator Model

Semicon. laser diode (LD)

excitation Q-switch solid laser

Applicable Tape Frame

2-8-1

Utilities

Power supply

kW

200 ~ 220 V AC±10 %, 3-phase

For other than the above voltages, a transformer is necessary.

Power when processing

Consuption During warm-up

kW

1.2 (for reference)

kW

1.1 (for reference)

Max. Power

kVA

6.93

Air pressure

MPa

0.5 - 0.8

Air max. Consumption

L/min (ANR)

250

Clean air pressure

MPa

0.5 - 0.8

Clean air max Consu.

L/min (ANR)

10

Water pressure (spinner)

MPa

-

Water max. Flow rate (spinner)

L/min

-

Exhaust duct capacity

m3/min

5.0

Machine dimensions

mm

1,000x1,800x1,990

Machine weight

kg

Approx. 1,960 (without transformer for overseas use) Approx. 2,040 (with transformer for overseas use)
